Trenchless Sewer Repair: New Pipe, No Trench
Two genuinely different methods get sold under one word. One lines the pipe you have; the other destroys it and pulls a new one through. Knowing which you are being quoted matters.
Neither method fixes a sag. If the camera shows standing water, ask why lining is being proposed.
Terminology first
"Trenchless" describes the access, not the repair
Trenchless means the pipe is renewed without opening a trench along its whole route. Instead the work happens through existing access points and one or two small pits. That is the entire promise, and it is a real one: no trench across the drive, the patio, the mature oak's root plate or the front lawn.
Underneath the word sit two methods that behave very differently. Cured-in-place lining builds a new pipe inside the old one, using the old pipe as a mould. Pipe bursting destroys the old pipe and pulls a new one into the space. They suit different failures, cost differently, and have different disqualifying conditions. A quote that says only "trenchless" has not told you what is being done to your house.
Both start from the same place: a camera inspection with distances and a locate. Without footage nobody can honestly say whether either method applies.
Method one
Cured-in-place pipe (CIPP)

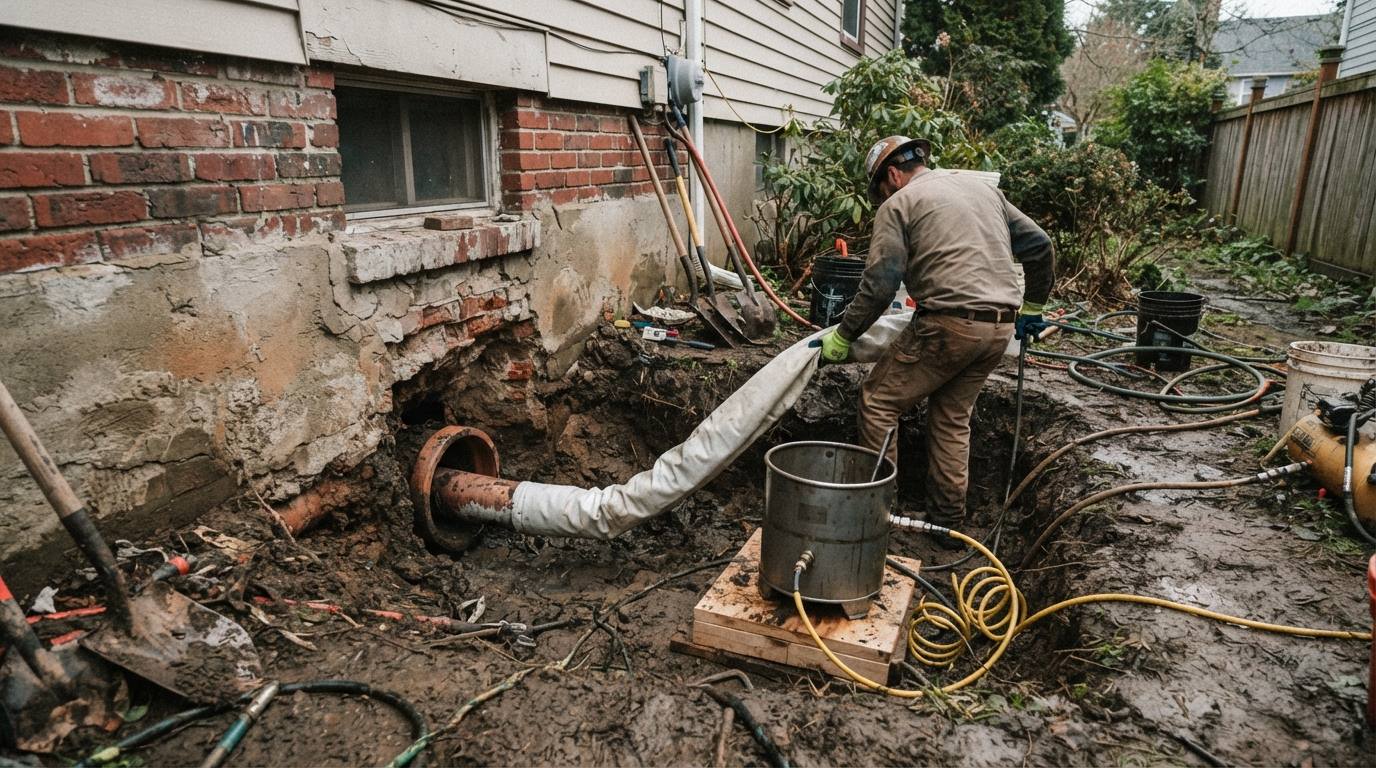

A flexible liner saturated with thermosetting resin is pulled or inverted into the cleaned host pipe, inflated tight against the wall, and cured, with hot water, steam, ambient heat or UV light depending on the system. What sets is a continuous, jointless pipe inside the old one, typically well over half an inch thick in residential sizes.
What it fixes well. Root intrusion, because it seals every joint the roots were using. Cracked and leaking joints. Groundwater infiltration that makes your drains back up only after rain. Corroded cast iron that has lost its invert but still holds its shape. Because it is jointless, there is nothing left for roots to enter.
What it costs you. A small loss of internal diameter, usually acceptable, and often more than offset by the smooth resin wall flowing better than scaled cast iron or rough clay. Branch connections along the lined section have to be reinstated by a cutter, which is routine but must actually be done.
What disqualifies it. A host pipe that is collapsed, crushed or missing sections, the liner needs a continuous mould. Severe offsets where the ends no longer meet. Orangeburg that has already gone oval. And, most importantly, a belly: the liner follows the existing alignment exactly, so a sag holding standing water stays a sag holding standing water.
Lining does not correct grade. Ever.
If your camera footage shows the lens going under water and staying there, lining will produce a smooth new pipe with the same low spot in it. That run has to be dug and re-laid to fall. This is the single most common way homeowners spend five figures and keep the problem.
Method two
Pipe bursting
A conical bursting head is winched through the old lateral, fracturing it outwards into the surrounding soil while towing a new fused HDPE pipe in behind it. Two pits, one at each end, instead of a trench. What you finish with is a brand-new pipe with no joints along its length, not a lining of something old.
The host pipe does not have to survive
Unlike lining, bursting does not need the old pipe to hold together as a mould. It is being deliberately broken. That makes it the trenchless option for badly deteriorated clay, collapsed sections and Orangeburg, where a liner has nothing to cure against.
It can go up a size
Because the head displaces soil as it goes, the new pipe can be larger than the old one, useful where an undersized lateral has always been marginal, or where a house has been extended and fixture count has grown.
Fused HDPE, no joints
Sections are heat-fused into one continuous length before insertion. No joints means no root entry points and no infiltration, and HDPE tolerates the seasonal movement of Georgia red clay better than rigid jointed pipe.
Where it is ruled out
Shallow runs where fracturing could disturb the surface or nearby utilities. Rocky ground and, in parts of northwest Georgia, shallow bedrock. Tight bends. Very long runs beyond the rig's pulling capacity. And, again, a belly, bursting follows the existing path too.
Trenchless equipment is concentrated in metro Atlanta and the larger cities. In rural counties it may mean a wait or a travelling crew.
Ask About TrenchlessThe honest caveats
What trenchless does not solve
It is not a no-dig repair. It is a no-trench repair. There will be at least one pit, usually two, and they are proper excavations, commonly at the house connection and near the property line or kerb. Anyone promising zero excavation is misdescribing the work.
Grade problems still need digging. Both methods follow the existing alignment. A sag has to be excavated and re-laid to fall.
Branch connections need attention. Where a lined section passes a branch, the connection has to be reinstated internally, and the junction is the one place a liner is most likely to be imperfect. Ask for camera verification after curing.
It is not automatically cheaper. Per foot, trenchless usually costs more than open cut. It wins on total cost when what sits on top of the line is expensive to remove and replace, driveway, patio, decorative paving, mature planting, a public road. In open lawn with a shallow line, an open cut can be both cheaper and faster.
It is not for every line. Multiple offsets, a crushed run, tight bends, very shallow cover or bedrock can rule both methods out. That is a finding, not a failure. See sewer line repair for the open-cut route.
Deciding
Which method fits which finding
- Roots through otherwise sound joints, pipe holding shape. Lining. It seals the entry points and it is the least invasive real fix available.
- Cast iron with a corroded invert, still round. Lining, once cleaned and camera-verified.
- Rain-driven backups from infiltration. Lining, which seals the whole run against groundwater.
- Badly broken clay, missing sections, Orangeburg gone oval. Bursting, or open cut. There is nothing for a liner to cure against.
- Undersized lateral, or one you want upsized. Bursting.
- Belly holding standing water. Open cut over that run, re-laid to grade. Do not accept a lining quote for this.
- Shallow line in open lawn, one clear break. A located spot dig, and keep the money.
Whatever the method, get post-work camera footage. It is the only evidence that what you paid for is what is in the ground, and it is the baseline for the next twenty years.
Bring your camera footage to the conversation and the quote gets a lot more specific.
Talk Through Your OptionsQuestions we get on the phone
Answered plainly
Per foot, usually not. It costs more. It wins on the total bill when what sits above the line is expensive to remove and put back: a concrete driveway, a patio, decorative paving, mature planting or a public road. For a shallow line under open lawn, an open cut is often cheaper and faster.
CIPP liners are generally rated for around fifty years, and a properly installed liner in a stable host pipe should outlast most owners’ time in the house. The variables are surface preparation, resin mix and cure, and reinstatement of branch connections, which is why installer quality matters more than brand.
Yes, where it is installed correctly. Roots enter through joints and cracks; a cured liner is continuous and jointless, so there is nothing to enter. The exception is the junctions and the connection at each end, which is where a poorly finished liner can still leak, get camera verification after curing.
No. Both lining and pipe bursting follow the existing alignment, so a sag holding standing water stays a sag. That run has to be excavated and re-laid to proper fall. If someone is quoting lining for a bellied line shown on camera, ask them directly how the grade gets corrected.
Typically two pits rather than a trench, commonly one at the house connection and one near the property line or kerb. They are real excavations, roughly the size of a small table, and they need backfill and restoration. Confirm in writing what restoration is included before work starts.
The equipment and the crews trained on it are concentrated in metro Atlanta and the larger cities, Athens, Macon, Savannah, Columbus, Augusta. In rural counties it may mean a longer wait, a travelling crew, or an honest recommendation that open cut is the practical choice locally. We will tell you which on the call.
